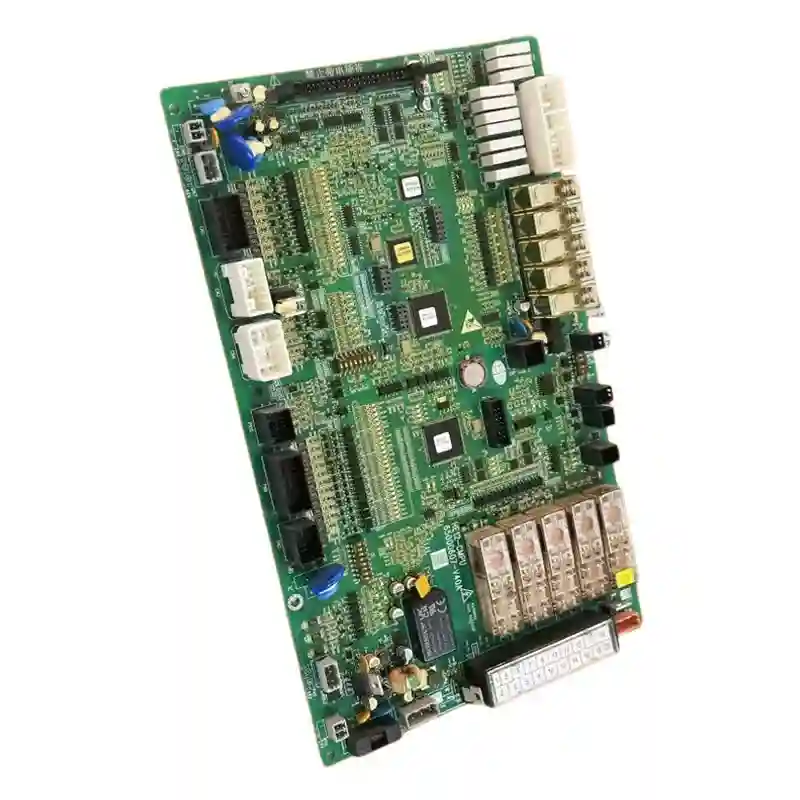

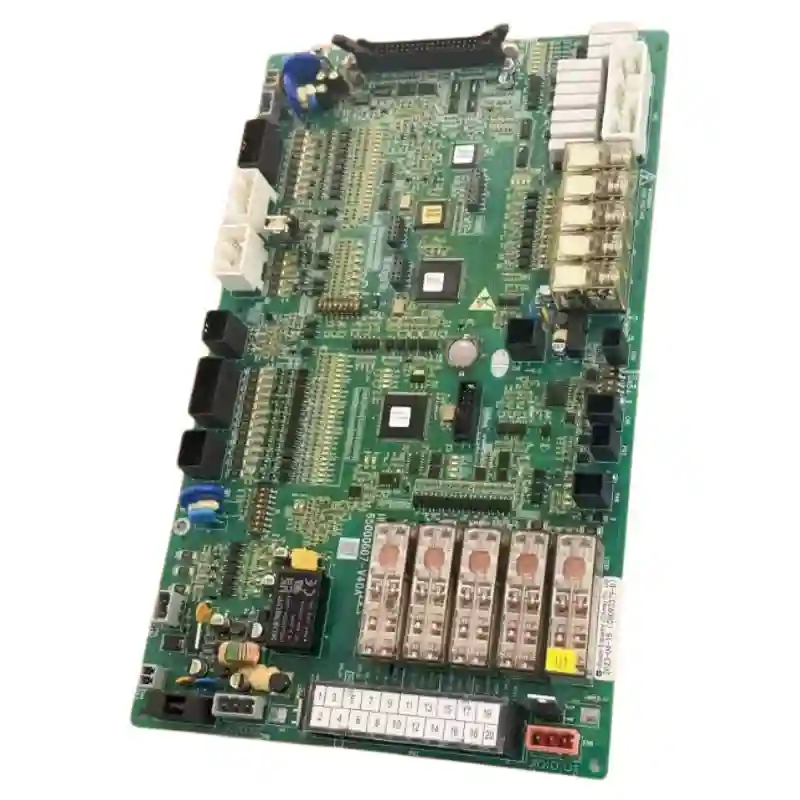

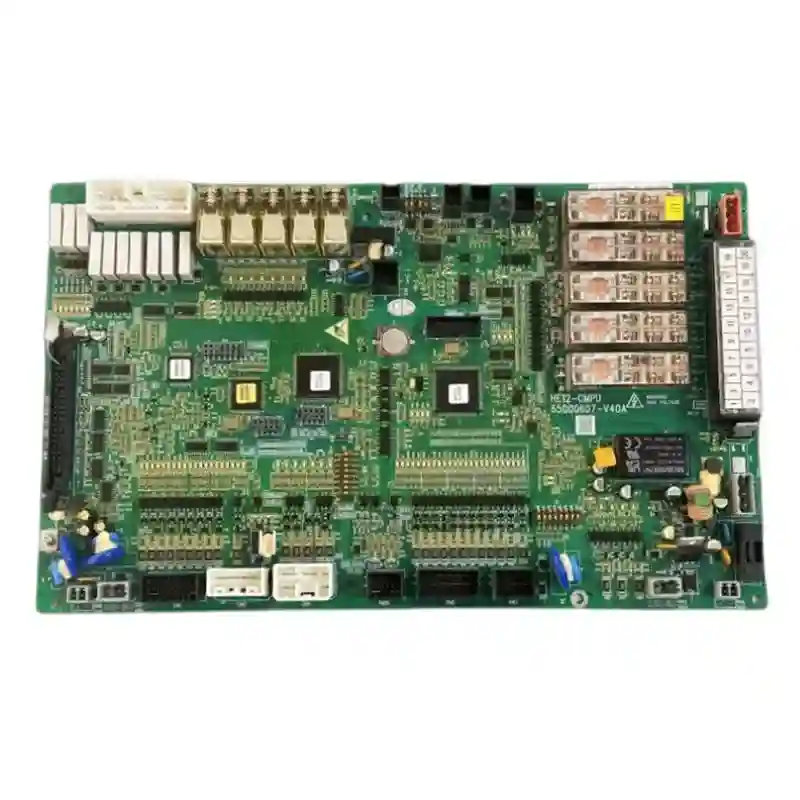

65000607V40 HE12-CMPU Hitachi Escalator CPU Main Board

Product details

OEM Part No.65000607V40, PCB model HE12-CMPU, exclusive main CPU control board for Hitachi HE12 VVVF commercial escalators.This PCB integrates full circuits including escalator operation logic calculation, safety loop detection, variable speed regulation, fault code collection and energy-saving mode control. Equipped with multiple safety relays, standard multi-pin plug terminals and multi-channel I/O signal ports, it fully controls escalator start-stop, braking, handrail monitoring, emergency stop protection and self-diagnosis. DIP switches, terminal pin definition and mounting holes are 1:1 consistent with OEM standard, plug-and-play replacement without wiring modification or program rewriting. Compatible with indoor Hitachi HE12 escalators of 800/1000/1200mm width in malls and metro stations, 12-month full board warranty.

Product parameter

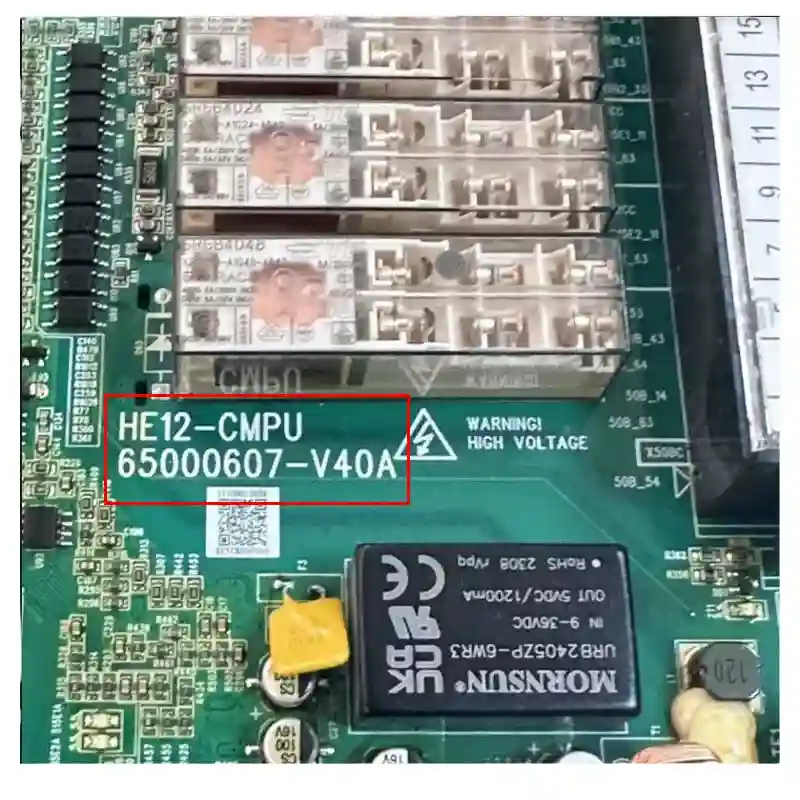

OEM Part Number	65000607V40
Main Board Model	HE12-CMPU
Compatible Escalator Series	Hitachi HE12 VVVF Commercial Escalator
Compatible Firmware Version	V30 / V40 / V40A
Substrate Material	Green Solder Mask Flame Retardant PCB
Core Components	Main CPU, Safety Relays, Multi-spec Plug Terminals, I/O Signal Ports
Core Control Function	Escalator Logic Control, Safety Loop Monitor, VVVF Speed Adjustment, Fault Self-Diagnosis, Energy Saving Mode
Applicable Step Width	800mm / 1000mm / 1200mm
Installation Method	Direct Plug Replacement, No Wiring Modification & Program Rewrite
Warranty Period	12 Months

Key Advantages

Global universal OEM part number 65000607V40 for accurate model matching to avoid wrong purchase and rework
V40 firmware compatible with V30/V40A old boards, one board fits multiple HE12 escalator versions to reduce stock pressure
Integrated full-process safety monitoring logic to detect handrail, step and emergency stop loops, auto stop & alarm once fault occurs
1:1 OEM terminals, DIP switches and mounting holes support direct installation without on-site debugging or program flashing
Moisture-proof flame-retardant PCB delivers stable anti-interference operation in damp indoor & semi-outdoor environments
Built-in energy-saving low-speed mode cuts power consumption under low passenger flow
